Details
The Pine Mountain is a classic steel hardtail with modern trail capabilities for hardtail purists pushing the limits and seeking adventure.
STEEL IS REAL
Pine Mountain 2 features Series 3 tubing and cast thru-axle dropouts.
BIKEPACKING ABILITIES
The Pine Mountain features brazed-in cargo attachment points throughout the front triangle for carrying all of the water and gear one needs for a proper adventure. The new Bedroll Bar features a 50mm rise and a long, straight top bar for cleanly mounting handlebar packs away from cables and controls, and also mounting lights, phones, cycle computers, or whatever else catches your fancy.

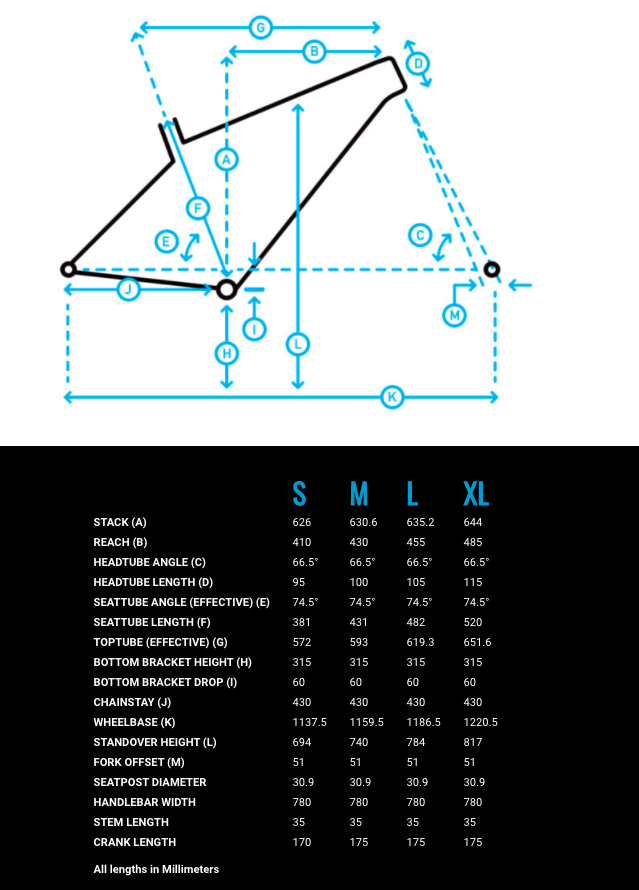

TRAIL GEOMETRY
The Pine Mountain Trail Geometry is a mix of agility for trail riding and all-day comfort for bikepacking. Short chainstays keep a shorter wheelbase for that active ride, while a 66.5-degree head angle makes for confident steering with or without the weight of gear.
TUBELESS READY 29"
Tubeless-ready 32mm internal dimension rims and 2.6" tires give the Pine Mountain a comfortable ride with huge traction and ability to roll up and over large obstacles, while still being light enough to pedal and fast enough to rip single track.
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Pedals sold separately
Specs
Frame | Series 3 Double Butted & Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts |
---|---|
Fork | RockShox FS 35, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset |
Headset | FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2" |
Rims/Wheels | Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible |
Hubs |
Front: Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Centerlock Disc, 32H Rear: Shimano, Microspline 148x12mm, Centerlock Disc, 32H |
Spokes | 14g Black Stainless Steel |
Tires | Vee Tire Flow Snap, 29x2.6", Folding Bead, Tubeless Ready |
Crankset | FSA Grid, Modular 1x, Direct Mount MegaTooth Chainring |
Chainrings | 32T |
Bottom Bracket | FSA Outboard Cartridge Bearings |
Chain | KMC X12 |
Rear Derailleur | Shimano SLX 12-Speed |
Cassette/Rear Cogs | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
Shifters | Shimano SLX 12-Speed |
Handlebars | Marin Pine Mountain Trail Bar, 50mm Rise, 780 Width, 10° Backsweep, 6° Upsweep |
Tape/Grips | Marin BearPaw Locking |
Stem | Marin 3D Forged Alloy, 35mm |
Brake Levers | Shimano MT500 Hydraulic |
Brakes |
Front: Shimano MT520, 4-Piston, Hydraulic Disc, 180mm Rotor Rear: Shimano MT500, 2-Piston, Hydraulic Disc, 160mm Rotor |
Saddle | Marin Pine Mountain Trail |
Seat Post | TranzX Dropper Post, YSP23 w/ 1x Remote, Size S 125mm Travel, All Other Sizes: 150mm Travel, 30,9mm |
Accessories & Extras | Bolt-on Thru-Axle |
* Subject to change without notice.
Videos
2020 Marin Pine Mountain
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Gloss Sage Green/Teal/Orange/Brown / Medium | 843346103499 | 730121002 | 210000008690 |
